compactMaster CM

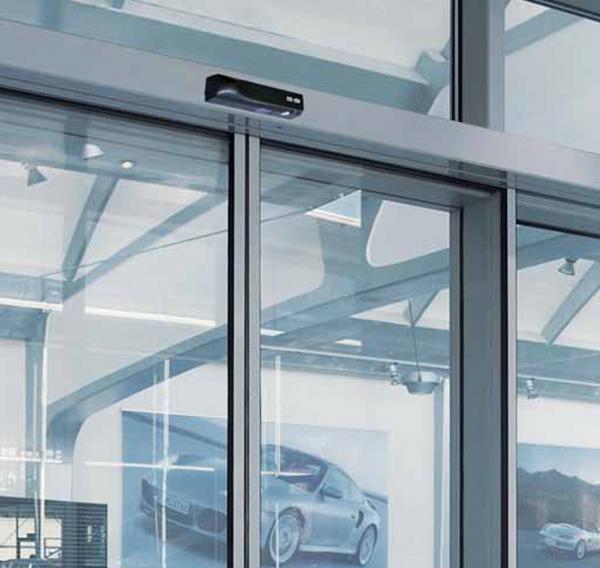

With its compact design and attractive, elegant appearance, the compactMaster  in-line sliding door harmonises especially well with architecturally sophisticated glass facades and emphasises their munificence and transparency.  The “true” drive height is only 100 mm, meaning the door leaf’s upper profile in the slim profile system is integrated into the drive and concealed by the cover. Large rollers and a rubber mat underneath the roller track ensure outstanding running smoothness.

The drives are certified to DIN 18650/EN 16005 and type-tested by TÜV and comply with the current directives and standards. The redundant CM-F drive system is tested and suitable for use in escape and rescue routes (AutSchR– German directive governing automatic sliding doors in rescue routes). In the CM WK2 and CM-F WK2 versions, the drives are tested in accordance with  EN 1627 to ensure they are burglary inhibiting.

Type CM-F: Redundant drive with 2 motors for use in escape and rescue routes

Type CM WK2 / CM-F WK2: Sliding door tested in accordance with EN 1627, in conjunction with automatic AMV multi-Point locking, additional components that prevent forced entry as well as the use of P4A safety glass or a suitable filling.

“True” drive height of 100 mm in conjunction with the G30 profile system

Running smoothness thanks to large rollers with exchangeable rubber-coated running face

Clear and simple operation

Optionally available with locking element integrated into the carriage, AMV automatic multi-point locking system or floor/hook bolt lock

Self-learning control system with many connection and adjustment options
