heavyMaster HM
The problem-solver for special requirements
The problem-solver for special requirements

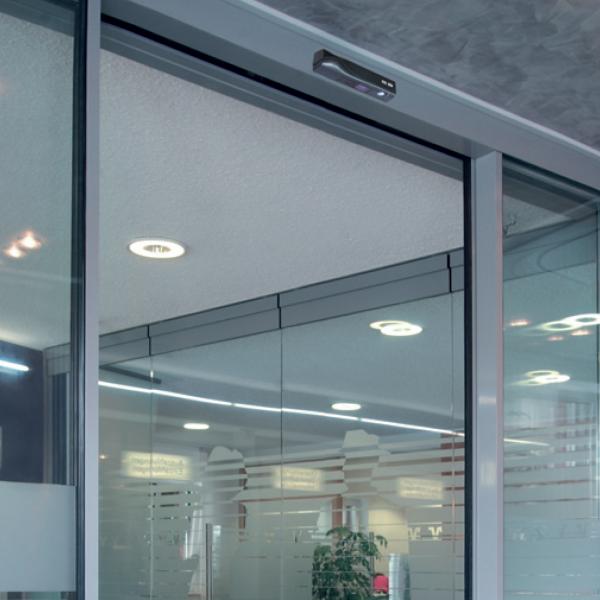

The heavyMaster sliding door drive is the problem-solver for your special requirements. Sliding panels with large dimensions or heavy weights of up to 200 kg are driven reliably and silently. Even in very high-traffic entrance areas, the heavyMaster ensures optimal running characteristics with the least wear, thanks to the stable carriage and large rollers withrubber-coated running face. Sliding Panels framed with thermally broken Profile systems or steel profiles are ideally suited for assembly with heavyMaster.
The drives are certified to DIN 18650/EN 16005 and type-tested by TÜV and comply with the current directives and standards. The HM-F drive system is tested and suitable for use in escape and rescue routes (AutSchR).
Convincing in detail
Type HM-F: Redundant drive with 2 motors for use in escape and rescue routes
Stable carriage with large rollers
Running smoothness thanks to rollers with an exchangeable rubber-coated running face
Clear and simple operation
Optionally available with locking element in the carriage or floor/hook bolt lock (optional)
G30 profile system with delicate appearance for sliding panels with up to 120 kg leaf weight
Self-learning control system with many connection and adjustment options
Continuous floor guide (optional)
Techinal Details
| Application | 1-leaf | 2-leaf |
| Clear passage width [1] [2] | 800-2000mm | 800-3000mm |
| Clear passage height [1] | max. 3000mm | max. 3000mm |
| Height of drive | 130mm | 130mm |
| Door leaf weight | max. 200kg / leaf | max. 200kg / leaf |
| Supply voltage | 230V AC, 50Hz | 230V AC, 50Hz |
| Power consumption | max. 160 VA (50 VA during operation) | max. 160 VA (50 VA during operation) |
| Hold-open time | 0-99 s | 0-99 s |
| Hold-open time with key impulse | 0-99 s | 0-99 s |
| Opening speed | max. 0,9 m/s | max. 0,9 m/s |
| Winter opening width [2] | 50% – 100% of the clear passage width | 50% – 100% of the clear passage width |
| Protection type / ambient temperature | IP 20 (for dry rooms only) / -15 °C up to +50 °C | IP 20 (for dry rooms only) / -15 °C up to +50 °C |
