Telescoping sliding door EMT
For maximum passage widths in minimum space
For maximum passage widths in minimum space

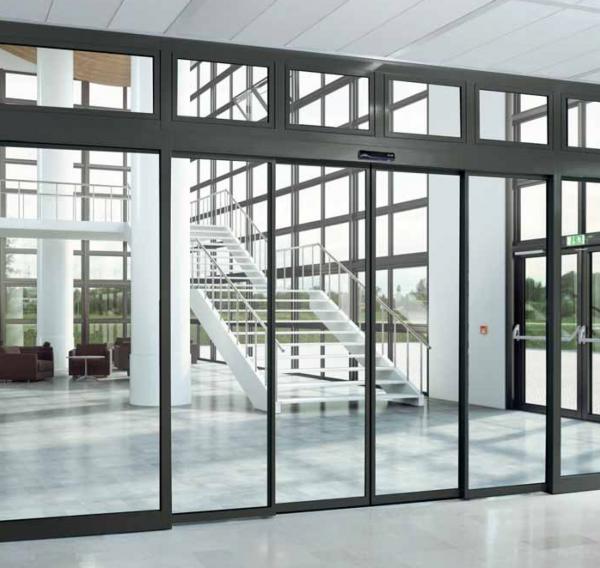

Telescoping sliding doors are ideally suited to achieving a broad passageway and an optimal flow of people in narrow spaces. The continuous floor guide helps to stabilise the sliding panels.
The drives are certified to DIN 18650/EN 16005 and type-tested by TÜV and comply with the current directives and standards. The EMT-F drive system is tested and suitable for use in escape and rescue routes (AutSchR).
Convincing in detail
- Type EMT-F: Redundant drive with 2 motors for use in escape and rescue routes
- Running smoothness thanks to large rollers
Roller-track warp resistance
- G30 profile system
Fast opening speed of up to max. 0.9 m/s
- Clear and simple operation
- Optionally available with locking element integrated into the'
- carriage or floor/hook bolt lock (optional)
- Self-learning control system with many connection and adjustment options
- Continuous floor guide (optional, recommended)
Technical details
| Application | 2-leaf | 4-leaf |
| Clear passage width [1] [2] | 900-2500mm | 1400-3800mm |
| Clear passage height [1] | max. 3000mm | max. 3000mm |
| Height of drive | 145mm | 145mm |
| Door leaf weight | max. 100kg / leaf | max. 80kg / leaf |
| Supply voltage | 230V AC, 50Hz | 230V AC, 50Hz |
| Power consumption | max. 160 VA (50 VA during operation) | max. 160 VA (50 VA during operation) |
| Hold-open time | 0-99 s | 0-99 s |
| Hold-open time with key impulse | 0-99 s | 0-99 s |
| Opening speed | max. 0,9 m/s | max. 0,9 m/s |
| Winter opening width [2] | 50 – 100% of the clear passage width | 50 – 100% of the clear passage width |
| Protection type / ambient temperature | IP 20 (for dry rooms only) / -15 °C up to +50 °C | IP 20 (for dry rooms only) / -15 °C up to +50 °C |
