shopMaster GSW-A

Exclusive and convenient

Exclusive and convenient

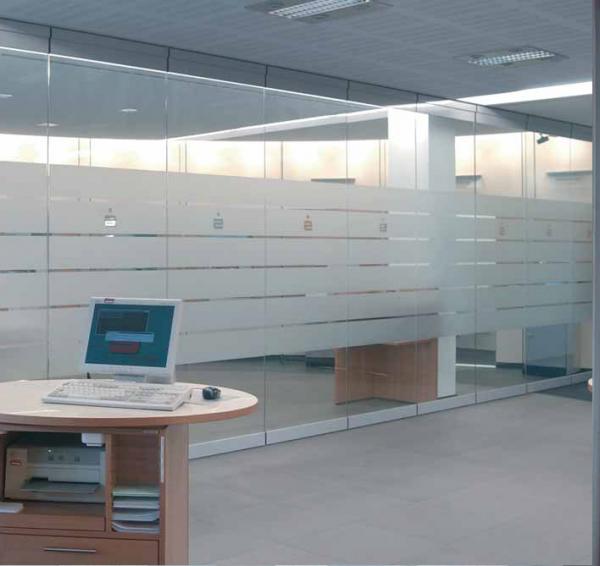

The automatic all-glass sliding panel system shopMaster GSW-A offers a wide variety of design options for architects and planners as well as maximum convenience for operators or users. The system’s compact design requires only minimal space for the roller track and parking niche. The modules are equipped with state-of-the-art carriage technology with plastic-coated, ballbearing-supported rollers.

These guarantee permanently reliable operation and noiseless movement of the elements. Thanks to the small roller track installation height of 86.5 mm, installation flush with the ceiling is possible almost everywhere. The required floor guide provides additional stability and utmost convenience to the user. For safety reasons, the automatic all-glass sliding panels can be moved by hand in the event of a power failure.

Convincing in detail:

  • Small installation height

  • Distance between moving panels adjustable: 50 – 1500 mm

  • High-quality, plastic-coated, ball-bearing-supported running mechanisms

  • Continuous floor guide

  • Panels movable by hand in the event of a power failure Optionally available with fully automatic wall cover for parked panels

Functional features:

  • Obstacle recognition

  • Maximum bump force 150 N

  • Automatic locking

  • Decelerated speed into the end positions

  • Emergency unlocking via profile cylinder

Technical Details

shopMaster GSW-A
Max. element height
3500 mm*
Max. element width
1250 mm*
Max. element weight
150 kg
Max. number of elements
Possible glass thicknesses
10 / 12 mm
Nominal voltage
230 V AC, 50 Hz
Nominal power
230 W
Load current
24 V DC
Ambient temperature
-15 °C to +50 °C
Protection type
IP 20
adjustable from 50 – 150 mm/s
Roller track version
linear / angled / curved from a radius of 6000 mm*

silver colour E6 / EV1 anodised

RAL colour as desired (powder coating)

stainless steel, matt polished**
