shopMaster GSW-M

Flexible and transparent > Flexible and transparent

shopMaster GSW-M

Flexible and transparent

Flexible and transparent

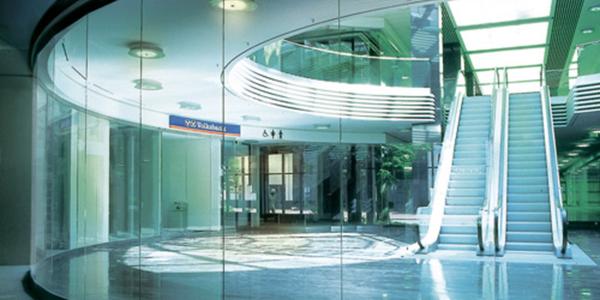

The shopMaster GSW-M all-glass sliding partition enables the creation of a multitude of individual partition walls and shop fronts for shop-in-shop concepts. Solutions can be implemented for practically any floor plan, giving completely free reign to the creativity of the planners. Depending on the equipment, the all-glass sliding panel system is available with a linear, curved or segmented design. The units can be arranged in a variety of ways – a floor guide is not needed. The system’s compact design requires only minimal space for the roller track and parking niche. The use of Swing&Slide panels equipped with a door closer is just one way of providing variable passages. The running mechanisms are equipped with high-quality, ball-bearing-supported rollers and guarantee permanently reliable operation and smooth movement of the elements during opening and closing. In the event of the glass breaking, the clamping profiles are protected from falling out by special door hardware.

Convincing in detail:

  • No continuous floor guide required

  • High-quality, plastic-coated, ball-bearing-supported running mechanisms

  • Modular design with prefabricated function elements

  • Two-part roller track allows flexible creation of curves

  • Locking elements for segmented systems




Technical Details


Description
shopMaster GSW-M
Max. element height
3500 mm*
Max. element width
1250 mm*
Max. element weight
150 kg
Possible glass thicknesses
10 / 12 mm
Roller track version
linear / angled / segmented / curved from a radius of 6000 mm
Finishes

RAL colour as desired (powder coating)
