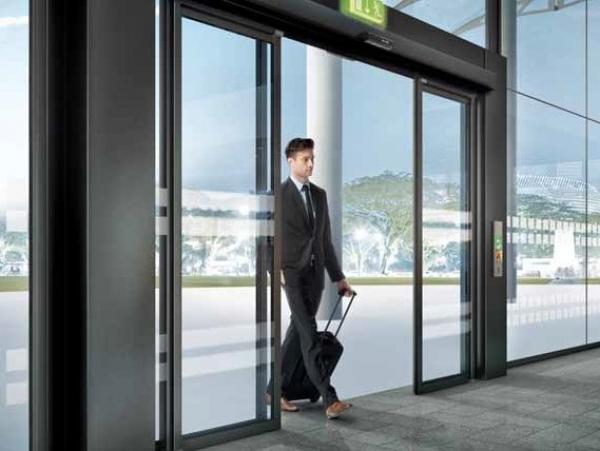

Escape route sliding door HM-F FT

• Buildings such as hospitals, hotels and airports as well as residential care homes for the elderly and disabled must always provide an escape option in night mode. During the day the benefits of an automatic sliding door, such as rapid opening, should also be available. Fortunately the first sliding door also to be approved as an escape door when locked is now available from the GU Group: the escape route sliding door HM-F FT guarantees the availability of rescue routes and that the building is closed – all in one door element with no other escape door required.

• This gives architects and planners more freedom when designing prestigious entrances that must comply with the AutSchR (German directive governing automatic sliding doors in rescue routes), EltVTR (German directive governing electrical locking systems on doors in escape routes), and also DIN 18650 and EN 16005.

Automatic / Exit operation mode

The movement sensors are active in Automatic or Exit operation mode. The door opens automatically when approached. Redundancy ensures that the sliding door opens automatically in the escape direction.

Off / Night operation mode

The sliding door becomes a swing door with escape door security. The door is locked and the movement sensors are inactive – the door therefore no longer opens when approached. The sliding door is secured against being pushed open via the integrated sliding door locking system and against break-out by escape door strikes in the pivot hardware.

Automatic / Exit operation mode

The movement sensors are active in Automatic or Exit operation mode. The door opens automatically when approached. Redundancy ensures that the sliding door opens automatically in the escape direction.

Off / Night operation mode – authorised access

The door can be unlocked  by authorised persons via access control or push-buttons on the inside and accessed as a sliding door. Following access, the door locks automatically.
