Access controlled in both directions

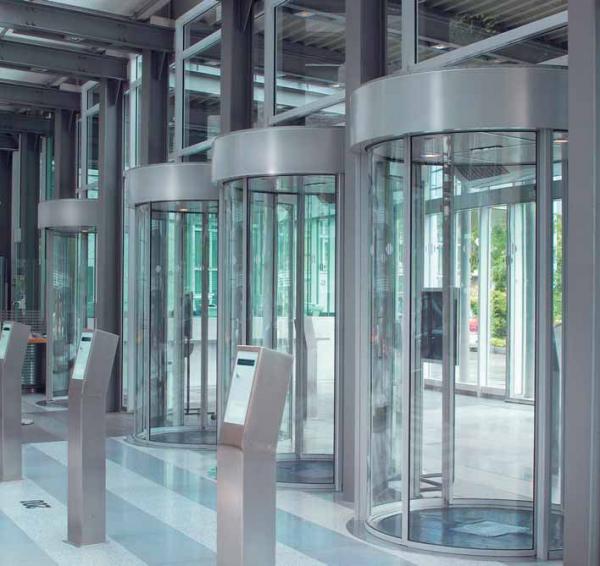

Access to high-security buildings or areas within a building can be controlled through security revolving doors. Alongside the functionality, the client’s wishes with regard to the building architecture must also be considered, so the solution we offer is consistently tailor-made.
In the initial position, the security revolving door is locked by means of a motor-driven brake system. An access control system releases it. Unauthorised persons are conducted out of the security revolving door in the exit direction.
Convincing in detail:
Access control, even in high-traffic areas
Access control in both directions
Draught-free and always noise-protected access control
Manual or automatic night locking feature
Contact mat for monitoring
Electro-motorised locking at the turnstile and / or with mechanical shoot bolt locks.
Easy adaptation to on-site access control systems
Different materials and finishes for individual solutions
Drum walls made of curved 10 mm laminated sheet safety glass (LSG) or heat-insulated sheet-metal panels
LED spotlights for installation in the aluminium ceiling
Outdoor roof is waterproof
Loose-fixed flange connection
|D*||A*||B*||C / 3-leaf||C / 4-leaf||E|
|1800||2100 – 3000||350 – 800||~ 859||~ 1239||1860|
|1900||2100 – 3000||350 – 800||~ 907||~ 1308||1960|
|2000||2100 – 3000||350 – 800||~ 954||~ 1377||2060|
|2100||2100 – 3000||350 – 800||~ 1002||~ 1446||2160|
|2200||2100 – 3000||350 – 800||~ 1050||~ 1514||2260|
