econoMaster EM

Reliable and economical – for almost all applications > Reliable and economical – for almost all applications
econoMaster EM

econoMaster EM

Reliable and economical – for almost all applications

Reliable and economical – for almost all applications

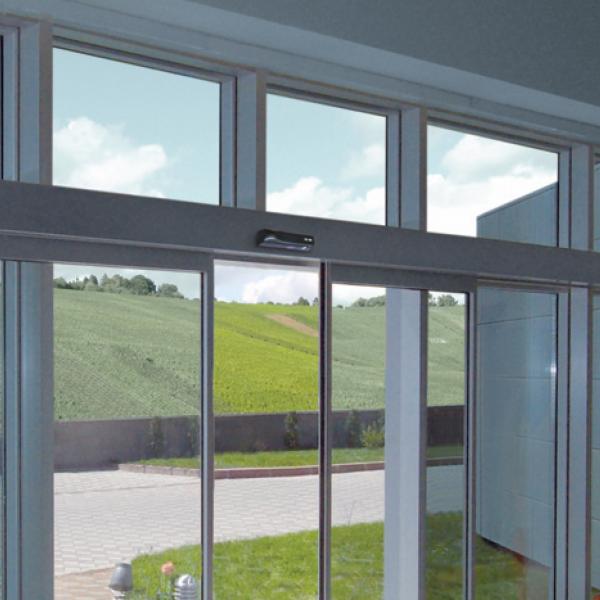

The tried and tested technology of the econoMaster drive system with 2 rollers and one counter roller per carriage guarantees low wear and high cycle numbers. With permissible door leaf weights of up to 130 kg, large passage widths can be achieved with our slim G30 profile system or with thermally-broken profile systems with an outstanding price-performance ratio. Whether your door assembly consists of drive and sliding panels only or also includes side elements or fanlights, GU Automatic offers you full service, consisting of installation, commissioning and maintenance. The drives are certified to DIN 18650/EN 16005 and type-tested by TÜV and comply with the current directives and standards. The EM-F drive system is tested and suitable for use in escape and rescue routes (AutSchR).

Convincing in detail:

  • Type EM-F: Redundant drive with 2 motors for use in escape
    and rescue routes

  • Well-engineered, proven mechanics

  • Fast opening speed of up to max. 0.9 m/s

  • Clear and simple operation

  • Continous floor guide (optional)

  • Optionally available with locking element integrated into the
    carriage or floor/hook bolt lock (optional)

  • Easy installation of roller track and drive components

  • Self-learning control system with many connection and adjustment options






Tech­ni­cal details


Application
1-leaf
2-leaf
Clear passage width [1] [2]
800-2000mm
800-3000mm
Clear passage height [1]
max. 3000mm
max. 3000mm
Height of drive
130mm
130mm
Door leaf weight
max. 130kg / leaf
max. 130kg / leaf
Supply voltage
230V AC, 50Hz
230V AC, 50Hz
Power consumption
max. 160 VA (50 VA during operation)
max. 160 VA (50 VA during operation)
Hold-open time
0-99 s
0-99 s
Hold-open time with key impulse
0-99 s
0-99 s
Opening speed
max. 0,9 m/s
max. 0,9 m/s
Winter opening width [2]
50% – 100% of the clear passage width
50% – 100% of the clear passage width
Protection type / ambient temperature
IP 20 (for dry rooms only) / -15 °C up to +50 °C
IP 20 (for dry rooms only) / -15 °C up to +50 °C
