Overhead Holders & Stops

Concealed Mount, Medium Duty

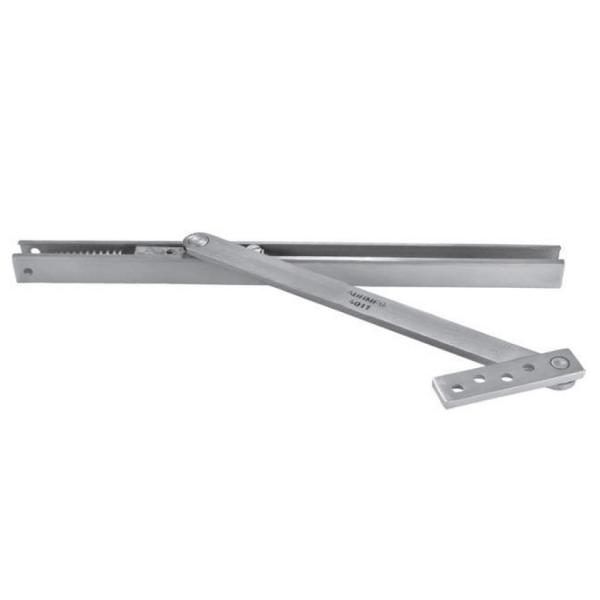

TU5900C Series
Standard Features
  • Concealed mount

  • Medium duty

  • Stop, hold-open and friction functions available

  • Single or double acting doors

  • Non-handed

  • For interior use on moderate traffic and medium weight doors

  • Standard installation from 85° to 110° of opening (5° increments)

  • Shock absorbing spring provides 3° to 5° cushion before dead-stop

  • 1-⅜” minimum door thickness

  • UL Listed as Miscellaneous Fire Door Accessories for use on Wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (stop function only)

  • Average weight per unit = 2 lbs.

Options Available
  • SEC – Security fasteners

  • LL – For lead-lined door applications

  • N – All stainless steel (non-ferrous) components for wet environments to prevent corrosion

  • T – Threaded pivot screw and nylon washer to replace jamb bracket

  • HC- Hold Closed

  • SPECIAL – Contact TÜR if the dimensions, hardware or specifications differ from what is shown on the template or if additional hardware is being used at the top of the door. A custom application and/or unit may be required.

  • If using a closer, please go to our website and reference “TÜR Overhead Holder & Stop Compatibility Chart” to determine possible conflict.

Material

Stainless steel is the standardbase material for arm, channel and jamb bracket for all finishes

Specify When Ordering
  • Model Number

  • Finish

  • Option(s), if applicable


How to order.


Brand Identity
Model No:
Option
Door Opening
Height
Option
Finish
TU
5900C
HO – Holder
18″-23 – Concealed
A – Adjustable
AJB-Angle Jamb Bracket
630


ST – Stop
24″-29 – Concealed

CL-Use with Cam Lift Hinges
629


FC – Friction
30″-35 – Concealed

HC-Hold Closed
689



36″-48″- Concealed

LL-Lead Lined
605





LS-Less Spring
606





SEC-Security Fastners
626





SNB-Sex Bolts
625
Ex: TU5900C.HO.18.A.AJB.680
